The Sega Game Gear got a great deal right. In 1990 it offered a backlit colour screen at a time when its main rival was a green-on-grey LCD, and it had an arcade pedigree behind its library that few handhelds could match.
It got one thing catastrophically wrong: power.
Six AA batteries, consumed in roughly three to five hours. That was the deal. A full set of alkalines bought you an afternoon, and the backlight that made the screen so appealing was precisely what drained them. Owners in the nineties learned to travel with spares, hunt for the mains adapter, or simply accept that the console lived on a desk near a plug socket.
Three decades later, that fundamental limitation is still there — and it is the single biggest reason a working Game Gear ends up in a cupboard rather than in someone's hands. A Sega Game Gear USB-C modification with rechargeable batteries addresses it directly.
What the Modification Actually Does
The upgrade replaces the original six-AA arrangement with an internal rechargeable cell and a USB-C charging port fitted to the console.
In practice, this means:
- You charge it like any modern device. Same cable as your phone, laptop or Switch. No proprietary adapter to lose, no barrel connector to hunt down on an auction site.
- The AA compartment is freed up. No more buying batteries, no more leakage risk from cells left in storage — which is itself a common cause of corrosion damage in surviving consoles.
- Runtime improves substantially. A modern lithium cell delivers considerably more usable playtime than a set of alkalines, and it does so without the gradual dimming that came with draining AAs.
- Charge-while-you-play becomes possible. A power bank in a bag effectively removes the runtime ceiling.
The result is a console that behaves the way a handheld should: pick it up, play it, put it on charge.
If you want to see the specification and what the work includes, the full details are on the Game Gear USB-C charging modification with rechargeable batteries page.
Why This Matters More on a Game Gear Than Most Retro Consoles
Plenty of vintage handhelds can be modded. The Game Gear benefits disproportionately, for a few specific reasons.
The power draw was extreme by the standards of its era. The backlit screen was the console's headline feature and its greatest liability. Reducing that inconvenience changes the ownership experience more than the same mod would on a lower-draw device.
Original AA operation actively damages consoles. Alkaline cells left in a stored console leak, and that leakage corrodes battery terminals and traces. A large proportion of dead Game Gears found today died this way rather than from any component failure. Removing AAs from the equation permanently removes that risk.
The original mains adapters are now scarce. The Sega power supply for these units is a decades-old component, and old switch-mode supplies do not always age gracefully. USB-C sidesteps the problem entirely by using a standard everyone already owns.
Playing sessions are longer now than they were then. Retro gaming today is often a deliberate, unhurried activity rather than something squeezed into a car journey. A three-hour ceiling is more limiting than it used to be.
The Capacitor Question
Any honest discussion of Game Gear restoration has to address this, because it is the elephant in the room for the platform.
These consoles were built with surface-mount electrolytic capacitors that degrade with age. Over thirty-plus years, the electrolyte inside them dries out and leaks onto the board. The symptoms are well known to anyone who has handled one:
- No sound, or distorted, crackling audio
- A dim screen, or a display that will not come on at all
- A console that powers up briefly then dies
- Intermittent operation that changes when the unit is flexed or knocked
A capacitor replacement — recapping — is the standard remedy, and on most surviving units it is not optional so much as inevitable. If a console has not been recapped, it either has failing capacitors already or will develop them.
This matters for anyone considering a USB-C conversion, because the two jobs overlap. Both require opening the console and working on the board. Having them done together makes obvious sense: one disassembly, one set of labour, and a console that is genuinely sorted rather than half-sorted.
It is worth asking about capacitor condition when arranging any Game Gear work. A perfectly executed charging mod on a console with dying capacitors will still sound terrible.
What Else Is Worth Considering at the Same Time
Owners often pair the power upgrade with other improvements while the console is open:
Screen replacement. The original LCD is dim, blurry in motion and fairly washed out by modern standards. Replacement IPS panels are transformative — sharper, brighter, far better colour — and for many owners this is the upgrade that makes the console genuinely enjoyable rather than merely nostalgic.
Sound and volume circuitry. Frequently improved as part of a recap, since the audio path is where failing capacitors show themselves most audibly.
Contact and connector cleaning. Cartridge slot contacts and button membranes accumulate three decades of oxidation and grime.
Shell and screen lens restoration. Cosmetic, but it makes a considerable difference to a console you intend to display or use regularly.
None of these are mandatory. But bundling work into a single service visit is invariably better value than returning the console repeatedly.
Is This Reversible? And Does It Hurt Value?
A reasonable concern for collectors, and worth being straight about.
A charging modification is a modification. A console that has been converted is no longer in original factory configuration, and for a sealed collector-grade unit that matters.
For the overwhelming majority of Game Gears in existence, it does not. These were mass-market consoles sold in enormous numbers, and most surviving examples are well-used units with scuffed shells and yellowed plastic. Their value lies in being played. A modified, recapped, reliably powered console is worth more to almost any buyer than an unmodified one that needs three hours of work before it will switch on.
If you happen to own a boxed, pristine, unopened example, leave it alone. If you own a normal one that you would like to actually use, the modification is one of the better things you can do for it.
Why This Is Not a Beginner Soldering Project
Guides exist online, and the concept is straightforward enough on paper. The execution is less forgiving:
- Work involves soldering directly to a thirty-year-old board where pads lift easily under heat
- The original surface-mount capacitors sit close to components that are damaged by careless rework
- Fitting a USB-C port neatly requires accurate shell modification — get it wrong and the damage is permanent and visible
- Lithium cells need appropriate charging and protection circuitry, not an improvised arrangement
- Replacement boards and shells for this console are finite and getting harder to source
A botched attempt on a console that is no longer manufactured is not a recoverable situation in the way a phone repair usually is.
Bringing a Shelved Console Back Into Use
Most Game Gears that survive today are not broken beyond hope. They are consoles with tired capacitors and an impractical power arrangement, sitting unused because switching one on is more effort than it is worth.
A USB-C conversion with rechargeable cells removes the practical obstacle. Combined with a recap, it produces a handheld that works properly, sounds right and charges from the cable already on your desk.
You can find the service specification on the Sega Game Gear USB-C charging modification with rechargeable batteries page.
Frequently Asked Questions
Can I still use AA batteries afterwards? This depends on how the conversion is configured. If retaining the original battery compartment as an option matters to you, raise it before work begins.
How much longer will it run than on AAs? Considerably longer, though the exact figure depends on the cell fitted and whether other modifications such as a replacement screen are in place. A modern lithium cell comfortably exceeds a set of alkalines.

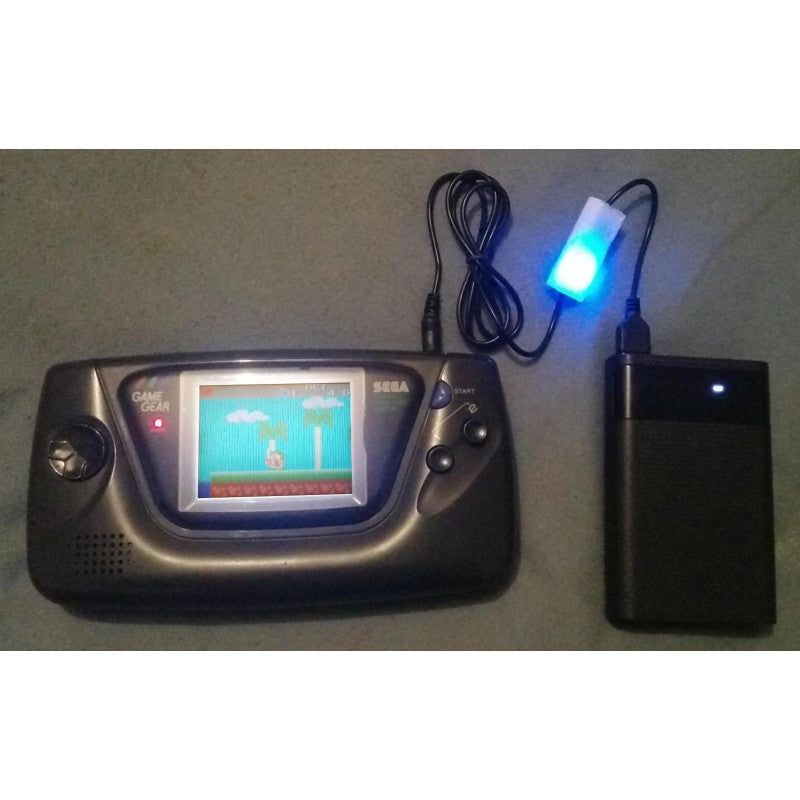

Can I play while it charges? Yes. This is one of the main practical benefits — a USB power bank effectively removes the runtime limit.
Does my console need recapping as well? Almost certainly, if it has not been done already. Age-related capacitor failure affects essentially every unit of this era. Dim display, absent or distorted sound, and unreliable power-up are the classic symptoms.
Will this fix a console that does not switch on? Not by itself. A dead console needs diagnosis first — the cause is commonly failed capacitors or battery terminal corrosion, both of which are separate repairs.
Will the modification be visible from the outside? A USB-C port has to be accessible, so there will be a port in the shell. Neat execution keeps this discreet and in keeping with the console's design.
